This document is a prelimary version and work-in-progress,
Details discussed in this document will be subject to future modifications.

PBX Speech

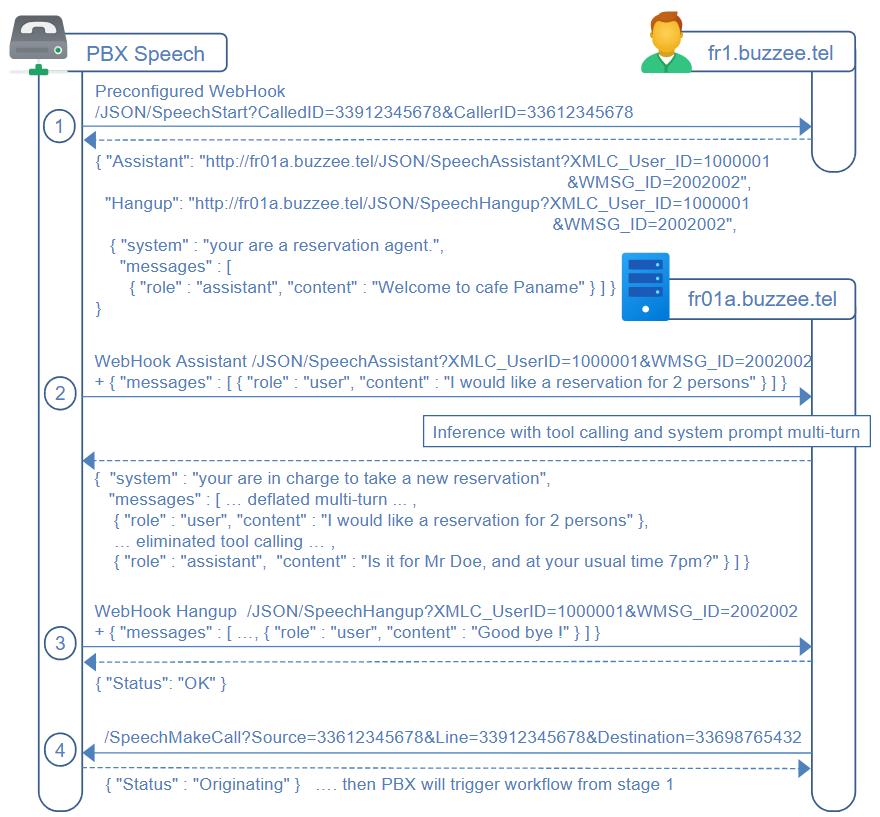

The dedicated PBX Speech server managing speech recognition and speech synthesis will invoke the Delos instance hosting the account of the user, the PBX Speech will submit the speech as JSON conversation similar to OpenAI model and it will obtain the response as a JSON conversation similar to OpenAI including the assistant message infered to synthesize speech in the audio stream of the call:

The workflow for PBX Speech is summarized through the major steps :

1. On new incoming call arriving at this PBX Speech, the PBX will invoke the preconfigured WebHook URL /SpeechStart at regional server fr1.buzzee.tel. The response will contain the subsequent WebHook URL to invoke on the host where is located the user (http://fr01a.buzzee.tel/JSON/SpeechAssistant). The initial response will contain the basic instructions and greeting message, the PBX will synthesize speech of the last message of role "assistant".
2. at each turn of the user conversation, the PBX will invoke the WebHook URL /SpeechAssistant obtained in initial response, the PBX will provide the last user message (and possibly the multi-turn conversation as received from previous call to Delos instance).
Delos instance will provide the deflated conversation including the last message as role "assistant" to synthesize speech to the audio channel.
3. When the call is being hangup by the caller, the PBX Speech will invoke the preconfigured WebHook URL /SpeechHangup to terminate the session of the assistant for this WMSG_ID
7. Delos instance may request the PBX Speech to initiate a speech call by invoking /SpeechMakeCall, PBX will originate the call and start the workflow from step #1 /SpeechStart.

HTTP Authorization and Protocol

Authorization for communications between PBX and host servers fr01a.buzzee.tel (fr02a.buzzee.tel, ...) will be ByPass per IP.
The API will be HTTP requests.

/SpeechStart (PBX Speech -> Regional server)

On new incoming call arriving at the PBX Speech server, the PBX will invoke the regional server fr1.buzzee.tel to obtain the main WebHook URLs "Assistant" and "Hangup" to locate the server endpoint hosting the user of this speech line.
TO BE DISCUSSED: This first call may also return the initial system instructions, and greeting to be synthesize to voice by the PBX and played to the user.
The "user" is the vocabulary to name the contact on the phone line.
The PBX Speech server will invoke /SpeechStart when starting a new speech session (a call being answered on the PBX side).

PBX Speech will invoke a HTTP GET request to the regional Delos instance:

http://fr1.buzzee.tel/JSON/SpeechStart?CalledID=33612345678&CallerID=33698765432&CallID=123456_abcdef

The Delos instance will respond with main fields "Assistant" and "Hangup" which are the WebHook URLs to invoke to pursue the speech session. It may also return the initial system instructions, and opening message (greeting) to be synthesize to voice by the PBX and played to the user.

{
  "Assistant": "http://fr01a.buzzee.tel/JSON/SpeechAssistant?XMLC_UserID=100001&WMSG_ID=2002002",
  "Hangup": "http://fr01a.buzzee.tel/JSON/SpeechHangup?XMLC_UserID=100001&WMSG_ID=2002002",
  "Message": "Welcome to Cafe Paname. How can I help?",
  "Language": "fr",
  "Voice": "Joy",
  "Body": {
    "model": "gpt-oss-120b"
    "messages": [
      { "role": "system", "content": "You are a reservation agent." },
      { "role": "assistant", "content": "Welcome to Cafe Paname. How can I help?" }
    ]
  }
}



The following table summarizes the different error codes:

/SpeechAssistant (PBX Speech -> Delos)

After obtaining the main WebHook URLs Assistant, the PBX Speech will invoke this WebHook whenever a sentence is completed by the user during the call, and POST the transcript of this sentence since the last invocation.
The "user" is the vocabulary to name the contact on the phone line.

PBX Speech will invoke a HTTP POST request to the WebHook URL "Assistant" : "/SpeechAssistant" received in the initial call to /SpeechStart

http://fr1.buzzee.tel/JSON/SpeechAssistant?XMLC_UserID=100001&WMSG_ID=2002002

{
  "model": "gpt-oss-120b"
  "messages": [
    { "role": "system", "content": "You are a reservation agent." },
    { "role": "assistant", "content": "Welcome to Cafe Paname. How can I help?" },
    { "role": "user", "content": "I would like a table for 2 this evening" }
  ]
}

The body of the request content show the latest sentence of the user : "I would like a table for 2 this evening"
Note: the PBX Speech may decide to skip previous messages of the multi-turn converation, and send only the last user message, since the whole session is maintained also on the Delos server.
The 2 parameters of the WebHook URL "Assistant" can be consider as Opaque since they are part of the WebHook:

The Delos instance will respond with the multi-turn conversation deflated and augmented of the message to be synthesize to speech as the last message with "role": "assistant":

{
  "Message": "At what name would you like the reservation?",
  "Language": "fr",
  "Voice": "Joy",
  "Body": {
    "model": "gpt-oss-120b"
    "messages": [
      { "role": "system", "content": "You are a reservation agent." },
      { "role": "assistant", "content": "Welcome to Cafe Paname. How can I help?" },
      { "role": "user", "content": "I would like a table for 2 this evening" },
      { "role": "assistant", "content": "At what name would you like the reservation?" }
    ]
  }
}

The response to be synthesize as speech is the last message of "role": "assistant"
"At what name would you like this reservation?"

The following table summarizes the different error codes:

The following table summarizes the different error codes:

/SpeechHangup (PBX Speech -> Delos)

When the call is hangup by the caller or terminated by the PBX, the PBX Speech server will HTTP GET invoke Delos instance with the WebHook URL "Hangup" : "/SpeechHangup"

http://fr01a.buzzee.tel/JSON/SpeechHangup?XMLC_UserID=100001&WMSG_ID=2002002

The 2 parameters of the WebHook URL "Hangup" can be consider as Opaque since they are part of the WebHook:

The Delos instance will acknoledge the termination of the call with Status=OK.
Delos instance will terminate this session of the assistant.

{ "Status": "OK" }

The following table summarizes the different error codes:

/SpeechMakeCall (Delos -> PBX Speech)

Delos may initiate a call to start a new speech assistant session.

Delos will invoke a HTTP GET request to the PBX Speech server

http://frspeech.buzzee.tel/SpeechMakeCall?Source=33612345678&Line=33912345678&Destination=33609876543

The PBX server will respond with Status=Originating :

{
  "Status": "Originating"
}

The following table summarizes the different error codes:

Assistant

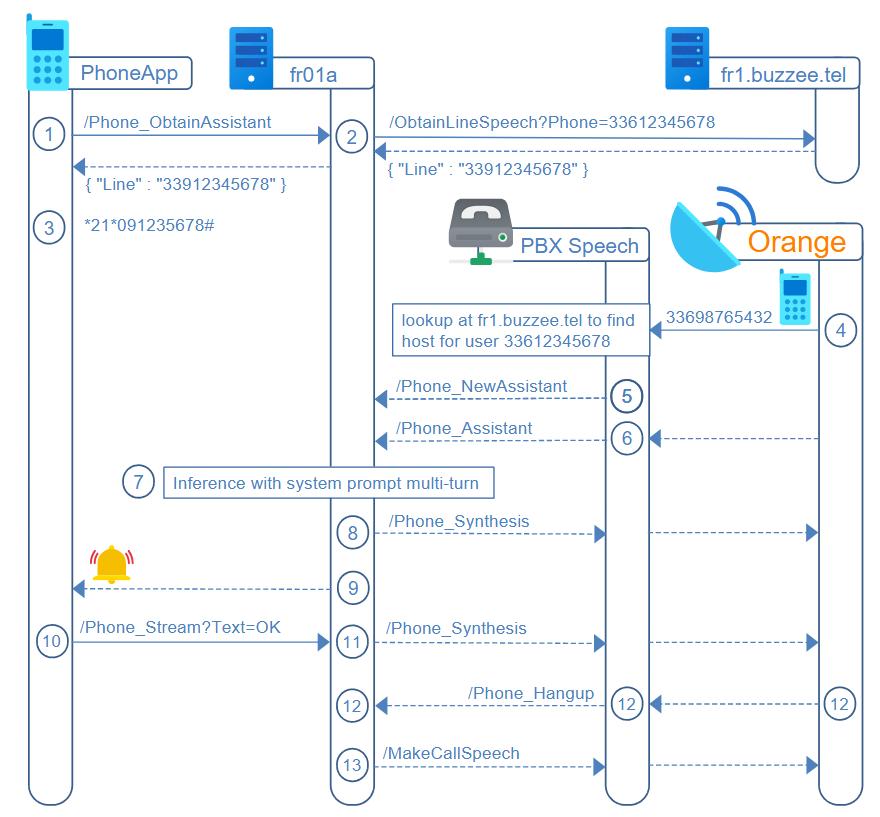

The workflow for Assistant describes the major calls between PhoneApp and Delos instance.

1. PhoneApp will query /Phone_ObtainAssistant on the Delos instance to get the phone number to setup call forwarding
2. Delos will relay this query to the Regional server fr1.buzzee.tel to /ObtainLineSpeech to obtain in response the Line to setup redirection
3. PhoneApp will dial the redirection of all calls to the line of the assistant
4..8 these steps are described in the section PBX Speech
9. During the multi-turn conversation, Delos instance may require a validation from the user, it will trigger a notification to wakeup PhoneApp
10..11 PhoneApp will query the state of the assistant, the user will select a custom answer and invoke /Phone_Stream with the text to be streamed in the audio channel of the ongoing call maintained by the assistant
12. When the call is hangup, the PBX Speech will invoke /Phone_Hangup to Delos instance to terminate the session of the assistant.
13. Delos instance may initiate a new speech session by invoking /MakeCallSpeech, the BX Speech will initiate the call and start over the workflow from step #3 /Phone_NewAssistant

/Phone_ObtainAssistant (PhoneApp -> Delos)

PhoneApp will GET /Phone_ObtainAssistant on the Delos server of the user to get the phone number to setup call forwarding to the assistant phone number:

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_ObtainAssistant?Phone=33612345678

Delos instance will forward this request to the Regional server fr1.buzzee.tel, and will respond with a JSON document:

{ "Line" : "33912345678" }

The major fields are:

The following table summarizes the different error codes:

{ "Line" : "33912345678" }
