Registration

Disclaimer

This document is a prelimary version and work-in-progress,
Details discussed in this document will be subject to future modifications.

User flow when lauching the application

The application initially collect the phone number of the user:

1. Retrieve the regional server (@fr1).
2. Retrieve the user on the regional server: /ASP_GetUserFromPhone?Phone=33612345678

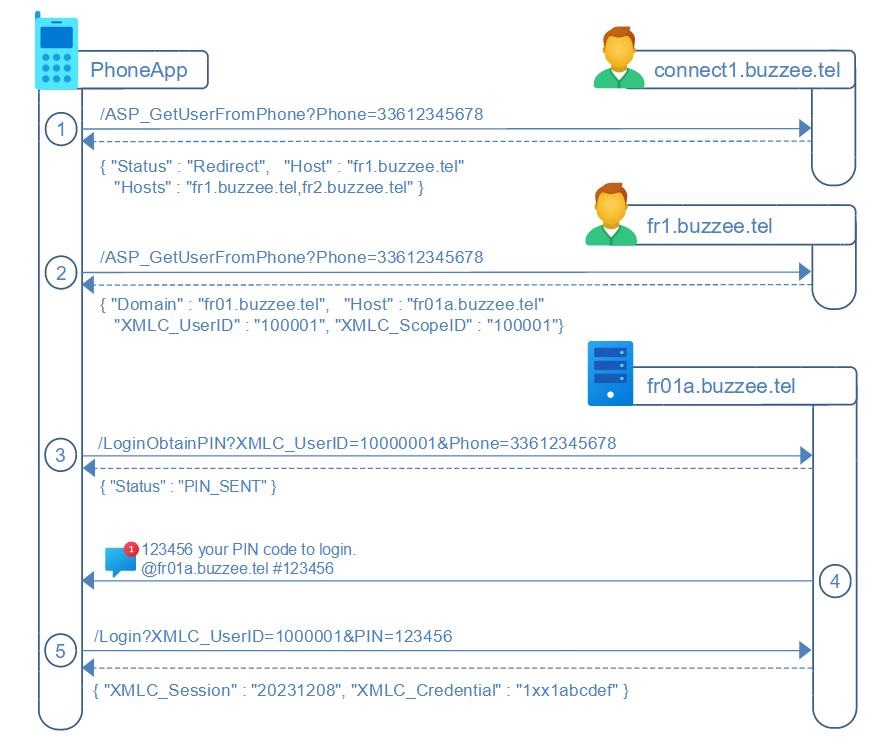

    If there is a user → proceed to login on the Host server

3. If there is no user (all other cases):
     a) Retrieve the local server via FormOpenAccount.
     b) Check if the server is invitation-only:
          If no → register directly.
          If yes → Collect the user's email address and call /ASP_WaitStatus?Email= to manage waiting list status:
              - Status=UserNotFound → "Waiting list" screen, then:
                      Use OAuth2 Email authentication OR
                      Call /ASP_WaitEmailPIN?Email= followed by /ASP_WaitRegister?Email=

              - Status=SessionIdNotFound → "Obtain session ID" screen, then:
                       Use OAuth2 Email authentication OR
                       Call /ASP_WaitEmailPIN?Email= followed by /ASP_WaitObtainSession?Email= and then /ASP_WaitStatus?Email=

              - Status=Wait → "Pending validation" screen.
              - Status=Invite → "Invitation accepted" screen.
              - Status=User → displayed error (this case should not happen,
                                                                    /ASP_GetUserFromPhone has been called at the beginning of the flow).

If the user relaunches the app:

1. If Credentials (Phone+SessionID) are present -> perform /CheckSession
2. If no credential, Retrieve information locally:
    - Check if they have already registered on the waiting list
    - Retrieve Email, SessionID, Phone, CountryCode
3. We call /ASP_WaitStatus?Email= with the available information:
     - Status=Invite → "Invitation accepted" screen.
     - Status=Wait → "Pending validation" screen.
     - If contact found but no SessionID:
            Use OAuth2 Email authentication OR
            Call /ASP_WaitEmailPIN?Email= followed by /ASP_WaitObtainSession?Email= and then /ASP_WaitStatus?Email=
     - Any other case → We display the first login page that asks for the phone number.

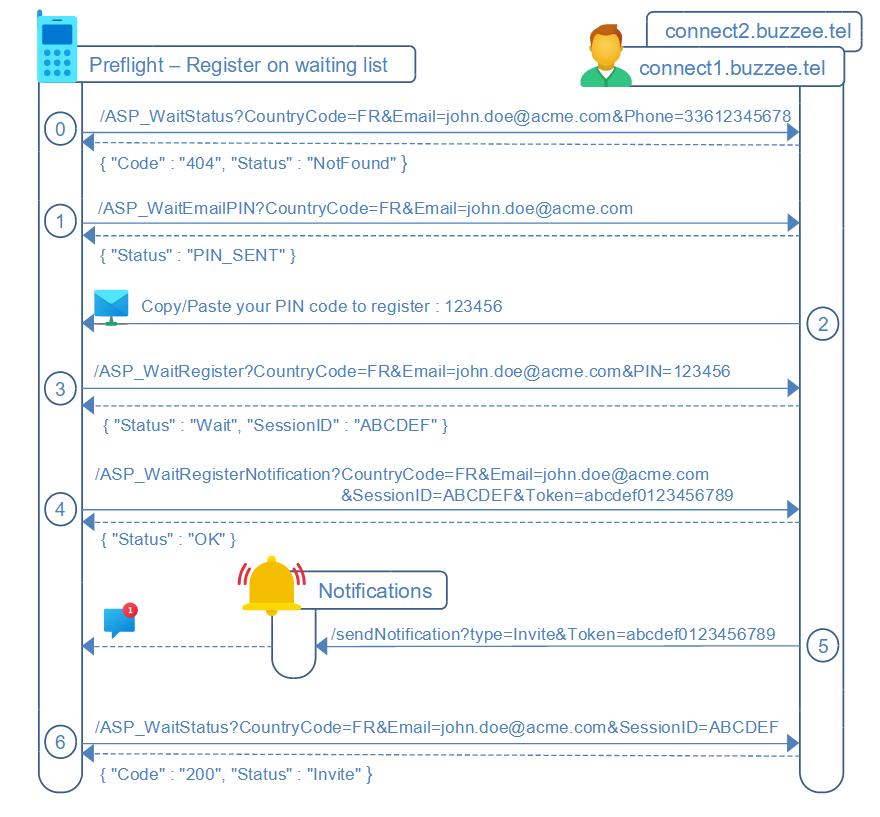

Preflight - Register on waiting list

During the rampup phase, all users will be queued on a waiting list.
This is the duty of the PhoneApp to manage the different steps to register the future user on the waiting list of the global connect servers:

0. The client application needs to query /ASP_WaitStatus on global connect servers to check the user is not already in the waiting list
1. The client application is now ready to proceed to register the candidate on the waiting list (if the region requires Wait=1),
invoke /ASP_WaitEmailPIN on top-level Global connect1.buzzee.tel server.
2. Global connect server will send an email with a PIN code to the email address provided
3. Invoke /ASP_WaitRegister with the main infos CountryCode, Email, PIN code, FirstName, LastName, Phone, to enqueue the candidate on the waiting list for his country (based on the CountryCode selected).
4. Optional. To get notified PhoneApp will request the user to accept notifications, it will collect the FireBase device registration token, and store this token by invoking /ASP_WaitRegisterNotification
5. Optional. When the waiting user will be officially invited to proceed to open his account, a /sendNotification of type "Invite" will be sent to the Notifications server which will relay this notification to the FireBase, which in turns will send the notification to the device.
6. the user will be invited to check from time to time the status of his registration, and wait for an invite, this is done by querying /ASP_WaitStatus
Once the ASP_WaitStatus become { "Status" : "Invite" }, then PhoneApp can proceed to the standard workflow to open account for a new user.

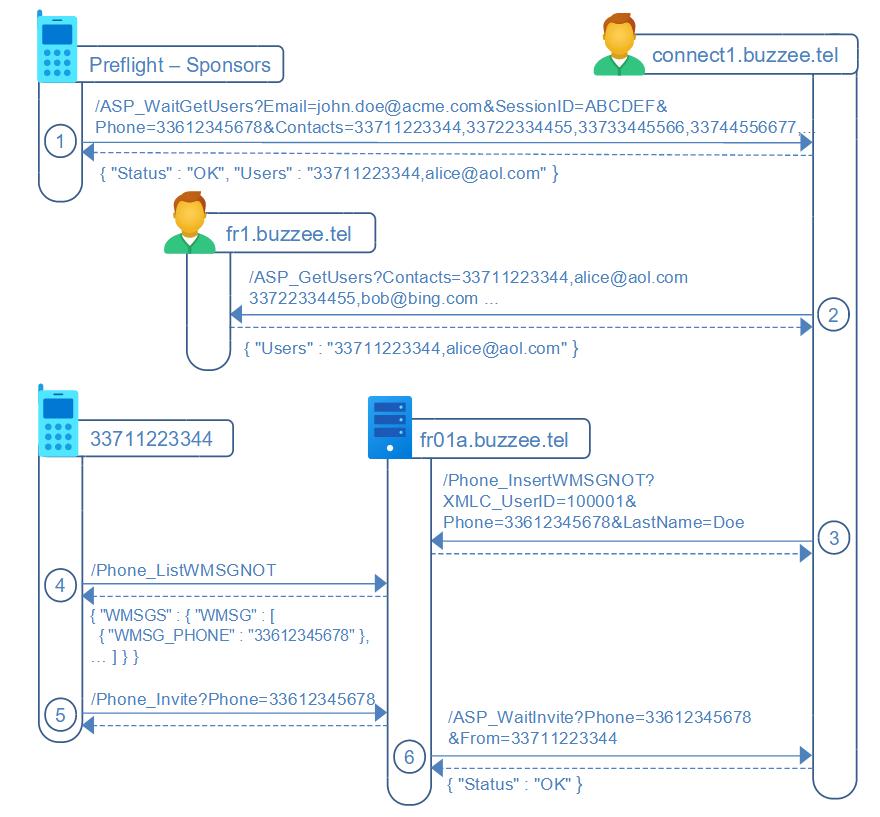

Meanwhile, the future user can gain faster invitation by getting some support from sponsors :

Once queued in the waiting list, in order to accelerate his validation for an invite, the user can search for sponsors.
1. The user is invited to check the contacts listed in his contact manager, to search for existing registered users of the application by invoking /ASP_WaitGetUsers
2. global connect server will collect on the different regional connect servers the existing users matching the list of phone numbers provided by invoking /ASP_GetUsers
3. ForEach existing user, global connect server will invoke /Phone_InsertWMSGNOT to insert a notification in the account of each user to invite them to sponsor the waiting user
3.bis The user may trigger a /ASP_WaitRequestSponsor for a specific contact which a user of BuzzeeTalk
4. /Phone_ListWMSGNOT will display the list of notifications with invitation to sponsor the waiting user
5. Client application can display a one-button "accept and invite" for each message and invoke /Phone_Invite to invite the waiting user,
as well, the client application may provide a form to submit an invite by providing the phone number of a contact requesting an invite.
6. Delos hosting server will invoke /ASP_WaitInvite to passthru the invite from the hosting server to the global connect server, increasing the number of sponsors of the waiting user.

/ASP_WaitStatus (PhoneApp -> Connect)

At initial download of the application, the client invokes ASP_WaitStatus to verify the user does not exists in the waiting list.
At regular time, the client application may request the status in the waiting list, until Status=Invite, in order to proceed to open account on a hosting server.
This query is performed against the global connect servers, connect1.buzzee.tel, connect2, connect3, whichever first server responds.

https://connect1.buzzee.tel/JSON/ASP_WaitStatus?CountryCode=FR&Email=john.doe@acme.com&SessionID=ABCDEF&Phone=33612345678

Note: Prefer to check on connect1.buzzee.tel then connect2.buzzee.tel, rather than invoking https://connect.buzzee.tel/ since it may return a 301 Redirect.

Initially, the user does not exists :

{ "Status": "NotFound" }

If the user is queued on the waiting list, Connect instance will respond with following response:

{ "Status": "Wait" }

Once the user is invited to proceed to open an account of a hosting server, the response will be:

{ "Status": "Invite", "Host":"fr1.buzzee.tel", "Hosts", "fr2.buzzee.tel" }

The table below describes the different fields:

The server may return errors

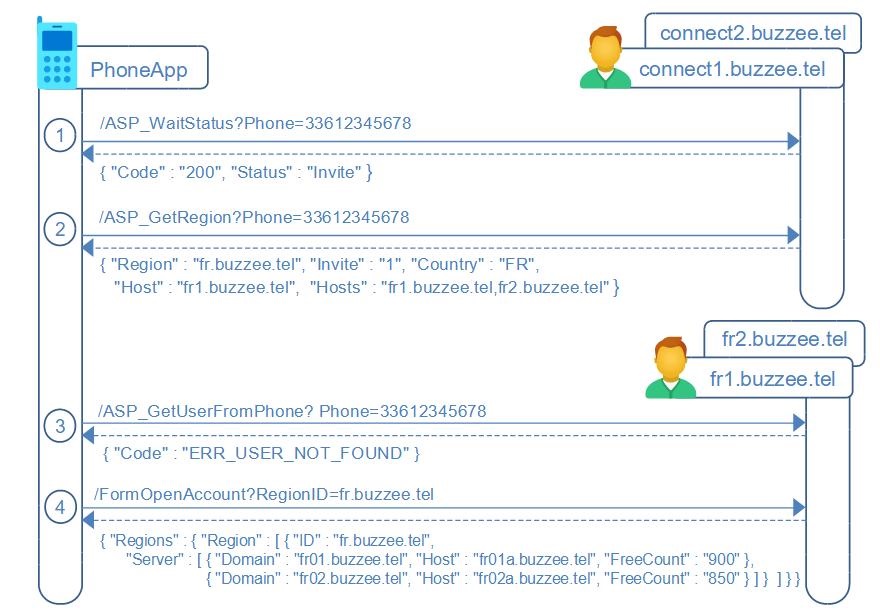

/ASP_GetRegion (PhoneApp -> Connect)

DEPRECATED as-of 2024-11-12. Should be replaced by downloading file https://connect1.buzzee.tel/Regions.json

The topology of the infrastructure relies on 3 levels:
- The global connect servers (connect1, connect2, connect3, ... ), queueing future users in waiting list per country
- The regional connect servers (per country, fr1.buzzee.tel, fr2.buzzee.tel,...), meant for lookups to locate on which hosting servers are hosted the account of each user
- The local hosting servers fr01a.buzzee.tel (frb01.buzzee.tel) store the user accounts

/ASP_GetRegion will provide the regional connect server for the region serving this phone number (based on international prefix).

https://connect1.buzzee.tel/JSON/ASP_GetRegion?Phone=33612345678

Note: Prefer to check on connect1.buzzee.tel then connect2.buzzee.tel, rather than invoking https://connect.buzzee.tel/ since it may return a 301 Redirect.

If there is a user already registered, Connect instance will respond with following response:

{ "Region" : "fr.buzzee.tel", "Invite" : "1", "Country" : "FR",
   "Host" : "fr1.buzzee.tel",  "Hosts" : "fr1.buzzee.tel,fr2.buzzee.tel" }

The table below describes the different fields:

The server may return errors

/ASP_WaitObtainPIN (PhoneApp -> Connect)

DEPRECATED as-of 2024-11-12.

To validate the Phone number of the user, a PIN code will be sent to the device through SMS.
This PIN code will need to be collected by the PhoneApp or by the user to validate the action /ASP_WaitRegister.
the HTTP request will be GET on the global host, in this example: connect1.buzzee.tel

http://connect1.buzzee.tel/JSON/ASP_WaitObtainPIN?Phone=33612345678&XMLC_Language=FRANCAIS

Delos instance will return in case of success a simple response:

{ "Status": "PIN_SENT" }

In case of error, expect a 500 Internal Server Error response:

{ "Code": "ERR_SEND_SMS" }

The server may return errors

/ASP_WaitEmailPIN (PhoneApp -> Connect)

To validate the process of registration based on email address to identify the candidate, a PIN code will be sent by email.
This PIN code will need to be copy/paste by the user from the email received to validate the action /ASP_WaitRegister.
the HTTP request will be GET on the global host, in this example: connect1.buzzee.tel

http://connect1.buzzee.tel/JSON/ASP_WaitEmailPIN?CountryCode=FR&Email=john.doe@acme.com&XMLC_Language=FRANCAIS

Delos instance will return in case of success a simple response:

{ "Status": "PIN_SENT" }

If the contact already exists, the response will contain CPSN_ID not blank.
This workflow may be used to regain access to a SessionID using /ASP_WaitObtainSession:

{ "Status": "PIN_SENT", "CPSN_ID" : "1001002" }

In case of error, expect a 500 Internal Server Error response:

{ "Code": "ERR_SEND_EMAIL" }

The server may return errors

/ASP_WaitRegister (PhoneApp -> Connect)

Once the PIN code has been received, and collected by the mobile app on the phone,
PhoneApp can proceed to register the future user in the waiting list.

The HTTP request will use POST multipart/form-data since there are few fields to submit:

http://connect1.buzzee.tel/JSON/ASP_WaitRegister?
CountryCode=FR
Email=john.doe@acme.com
PIN=123456
CPSN_LAST_NAME=Doe
CPSN_FIRST_NAME=John
Phone=33612345678
XMLC_Language=FRANCAIS

or

http://connect1.buzzee.tel/JSON/ASP_WaitRegister?
CountryCode=FR
Email=john.doe@acme.com
CPSN_LAST_NAME=Doe
CPSN_FIRST_NAME=John
Phone=33612345678
XMLC_Language=FRANCAIS
Provider=Google
IDToken=1x.abcdef.123456
AccessToken=1x.....
RefreshToken=1x.....

Delos instance will save this contact on the global connect server, in the scope of the country code provided.
Delos instance will setup a SessionID (CPSN_SESSION) for future communication to update infos :

{ "Status": "Wait", "SessionID": "ABCDEF", "Verified": "1" }

The following fields in the response are:

The server may return errors:

/ASP_WaitUnregister (PhoneApp -> Connect)

To unregister a user from the waiting list, PhoneApp can invoke /ASP_WaitUnregister

http://connect1.buzzee.tel/JSON/ASP_WaitUnegister?
CountryCode=FR
Email=john.doe@acme.com
Phone=33612345678
SessionID=ABCDEF

Delos instance will unregister this contact from the global connect server DB, in the scope of the country code provided.

{ "Status": "Deleted" }

The following fields in the response are:

The server may return errors:

/ASP_WaitRegisterEmail (PhoneApp -> Connect)

DEPRECATED as-of 2024-11-12.

PhoneApp may suggest to submit email address to be updated on the status and progress of the candidate,
it is the right time to update FirstName and LastName if not provided before.

The HTTP request will use POST multipart/form-data since there are few fields to submit:

http://connect1.buzzee.tel/JSON/ASP_WaitRegisterEmail?
CountryCode=FR
Phone=33612345678
Email=john.doe@acme.com
CPSN_LAST_NAME=Doe
CPSN_FIRST_NAME=John
XMLC_Language=FRANCAIS

Delos instance will update only FirstName, LastName, not email address until it is validated.
Delos will send an email with a PIN code to be copy-paste in PhoneApp to validate the email address,
The client application may invite the user to check his mailbox, to copy-paste the 6-digits PIN code received.

{ "Status": "EmailSent" }

The following fields in the response are:

The server may return errors:

/ASP_WaitVerifyEmail (PhoneApp -> Connect)

DEPRECATED as-of 2024-11-12.

The user should be invited to check his inbox for an incoming email from connect.buzzee.tel containing a PIN code,
the user should copy-paste this PIN code inside PhoneApp.

The client application will send a POST multipart/form-data request with following fields:

http://connect1.buzzee.tel/ui/ASP_WaitVerifyEmail
CountryCode=FR
Phone=33612345678
SessionID=ABCDEF
Email=john.doe@acme.com
PIN=123456

Delos instance will check PIN code for this email address, and update the contact with the email address provided.
The response should be:

{ "Status": "OK" }

The following fields in the response are:

The server may return errors:

/ASP_WaitRegisterNotification (PhoneApp -> Connect)

Optional. PhoneApp will request the user to accept notifications to get updated once his registration is being accepted,
PhoneAPp will collect the FireBase device registration token, and store this token on Delos instance with a HTTP POST multipart/form-data request:

https://connect1.buzzee.tel/JSON/ASP_WaitRegisterNotification
CountryCode=FR
Email=john.doe@acme.com
SessionID=ABCDEF
Token=abcdef0123456789

Delos instance will respond with Status OK:

{ "Status" : "OK" }

This device registration token will be sent to the Notifications gateway server to be relayed to FCM (FireBase Cloud Messaging)

The server may return errors:

/sendNotification [type=Invite] (Delos -> Notifications)

Optional. Once the contact has been validated, Delos will send a notification to invite the user to open an account on the hosting server of his region.
Delos instance sends a HTTP POST request to the PhoneNotifications server, with the type parameter as "Invite":

http://phoneappnotifications.buzzee.tel/sendNotification
Email=john.doe@acme.com
SessionID=ABCDEF
type=Invite
Token=abcdef0123456789

/ASP_WaitGetUsers (PhoneApp -> Connect)

The future user can gain faster invitation by getting some support from sponsors,
PhoneApp can suggest to search for contacts in the contact manager of the device to list the existing users of the application,
for which the future user could leverage to gain sponsor from them.
This action requires a HTTP POST request to /ASP_GetUsersFromPhones on the top-level global connect servers, providing the list of selected phone numbers from the contact manager:

https://connect1.buzzee.tel/JSON/ASP_WaitGetUsers
CountryCode=FR
Email=john.doe@acme.com
SessionID=ABCDEF
Phone=33612345678
Contacts=33711223344
33722334455
33733445566


The table below describes the different fields:

The top-level global connect server, will lookup on regional connect servers to find existing users based on the phone numbers provided. The response will contain the list of users found on the regional connect server:

{ "Status" : "OK", "Users" : "33711223344\n33722334455" }

If no user found in the list of the contact manager top-level global connect server will respond with:

{"Status": "NotFound" }

The following fields in the response are:

The server may return errors

/ASP_WaitRequestSponsor (PhoneApp -> Connect)

The user in the waiting list may enforce to request a sponsor to one of his contact which is an existing user of BuzzeeTalk
This is a HTTP POST request to the Global server connect1.buzzee.tel :

https://connect1.buzzee.tel/JSON/ASP_WaitRequestSponsor?
CountryCode=FR
Email=john.doe@acme.com
SessionID=ABCDEF
Contact=33711223344

Delos will lookup in the regional server where resides the user, and then post the request for sponsor to the server hosting the contact.
Delos instance will respond with a JSON document with Status=OK

{ "Status" : "OK" }

The server may return errors

/Phone_ListWMSGNOT (PhoneApp -> Delos)

Existing users may have a list of notification messages in their notification center,
one type of these notifications comes from a candidate in the waiting list in order to obtain an invitation to open his account.
This list can be obtained with a HTTP GET request to /Phone_ListWMSGNOT:

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_ListWMSGNOT

 Delos instance respond with a JSON document corresponding to the list of notifications:

{ "WMSGS" : { "WMSG" : [
   { "WMSG_ID": "1001002", "WMSG_DATE": "12/12/2023 09:20:00", "WMSG_MEDIA" : "-3508",
     "WMSG_INFO" : "Dave TheUgly is requesting a sponsorship to join BuzzeeTalk",
     "WMSGUSR_PSN" : "1000002", "WMSGUSR_FIRST_NAME" : "Bob", "WMSGUSR_LAST_NAME" : "THEGREAT",
     "WMSGPSN_PSN" : "1000202", "WMSGPSN_FIRST_NAME" : "Dave", "WMSGPSN_LAST_NAME" : "THEUGLY" },
   { "WMSG_ID": "1001004", "WMSG_DATE": "12/12/2023 09:00:00", "WMSG_MEDIA" : "-3508",
     "WMSG_INFO" : "Carol TheMad is requesting a sponsorship to join BuzzeeTalk",
     "WMSGUSR_PSN" : "1000002", "WMSGUSR_FIRST_NAME" : "Bob", "WMSGUSR_LAST_NAME" : "THEGREAT",
     "WMSGPSN_PSN" : "1000202", "WMSGPSN_FIRST_NAME" : "Carol", "WMSGPSN_LAST_NAME" : "THEMAD" },
   ...
   ] }
}

Actually, JSON document will return a larger document with a lot more fields, but these are the minimalists to be useful in the context of PhoneApp to display the notifications to validate invitation.

/Phone_Invite (PhoneApp -> Delos)

Existing users may have a list of notification messages in their notification center,
one type of these notifications comes from a candidate in the waiting list in order to obtain an invitation to open his account.
To sponsor a waiting candidate the user can invoke with a HTTP GET request /Phone_Invite:

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_Invite?Phone=33612345678

 Delos instance respond with a JSON document Status=OK

{ "Status" : "OK" }

Delos will forward this request to the global connect server where resides the waiting lists of candidates.

/CloseWMSG (PhoneApp -> Delos)

To mark a sponsorship request as completed, PhoneApp may invoke a HTTP GET request to /CloseWMSG:

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/CloseWMSG?WMSG_ID=1001002&XMLC_SkipNextAction=1

 Delos instance may respond with a JSON document, but it is probably containing other informations to ignore:

{ "Status" : "OK" }

/CancelWMSG (PhoneApp -> Delos)

To mark a sponsorship request as cancelled, PhoneApp may invoke a HTTP GET request to /CancelWMSG:

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/CancelWMSG?WMSG_ID=1001002&XMLC_SkipNextAction=1

 Delos instance may respond with a JSON document, but it is probably containing other informations to ignore:

{ "Status" : "OK" }

/Phone_Invite (PhoneApp -> Delos)

Existing users may have a list of notification messages in their notification center,
one type of these notifications comes from a candidate in the waiting list in order to obtain an invitation to open his account.
This list can be obtained with a HTTP GET request to /Phone_Invite:

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_Invite?Phone=33612345678

 Delos instance respond with a JSON document corresponding to the list of notifications:

{ "Status" : "OK" }

Delos will forward this request to the global connect server where resides the waiting lists of candidates.

/ASP_WaitObtainSession (PhoneApp -> Connect)

This API is used when SessionID has been lost.
First, the PhoneApp will request /ASP_WaitEmailPIN, the user will copy/paste the PIN code received, PhoneApp will invoke /ASP_WaitObtainSession with the Email and PIN code:

https://fr01a.buzzee.tel/JSON/ASP_WaitObtainSession?CountryCode=FR&Email=john.doe@acme.com&PIN=123456

or POST https://fr01a.buzzee.tel/JSON/ASP_WaitObtainSession
CountryCode=FR
Email=john.doe@acme.com
Provider=Google
IDToken=1x.abcdef.123456
AccessToken=1x...
RefreshToken=1x...

 Delos instance responds with a JSON document containing the SessionID:

{ "SessionID": "ABCDEF" }

The following fields in the response are:

The server may return errors:

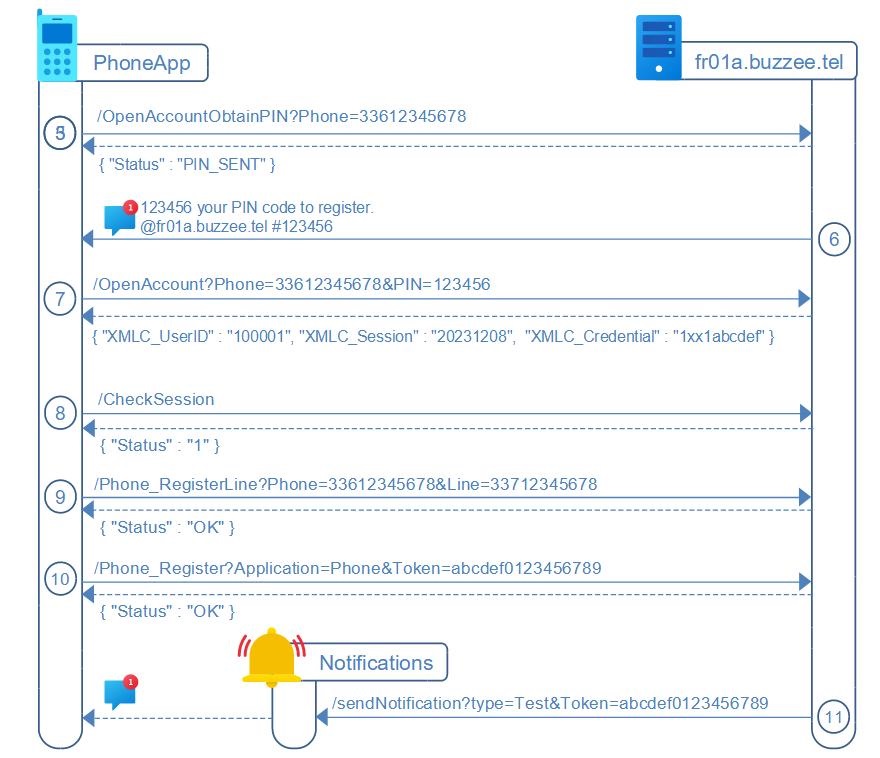

OpenAccount Workflow

Once the waiting user has been invited to proceed to open account,
the registration of a new user from the PhoneApp follows these steps:

1. Query /ASP_WaitStatus on global connect servers (connect1.buzzee.tel) to check if the phone number of the user is invited to proceed to open an account. It should return Status=Invite.
2. Next, query /ASP_GetRegion on connect1.buzzee.tel to get to which region is assigned this phone number (based on the international prefix).
3. Query /ASP_GetUserFromPhone on fr1.buzzee.tel to check response code error ERR_USER_NOT_FOUND
4. Request /FormOpenAccount on fr1.buzzee.tel to discover the available hosts, ie: RegionID=fr (or fr.buzzee.tel)
    It will respond for a specific RegionID with the list of available servers (hosts) with their capacity, the section PARAMS suggests the host with highest available accounts (Free)
5. Invoke the candidate hosting server (fr01a.buzzee.tel) OpenAccountObtainPIN with Phone and CPSN_EMAIL to check availability
6. the host fr01a.buzzee.tel will send an SMS
    Intercept the SMS containing the PIN code on the device
7. Invoke OpenAccount with Phone, CPSN_EMAIL and PIN code received by SMS
    the response will contain the Credential of the user newly created, PhoneApp can query /CheckSession to verify the Credential
8. To check the validity of the Credential, invoke action CheckSession with the Credential obtained in response of OpenAccount.
9. PhoneApp may register a secondary line (eSIM) used for MakeCall, by first, requesting a PIN code by SMS through Phone_RegisterLineObtainPIN, then submitting the PIN code received to Phone_RegisterLine
10. Finally PhoneApp will invoke Phone_Register to store on Delos instance the device registration token that will be used to identify the device for push notifications for FCM (FireBase Cloud Messaging)
11. a test notification will be sent which can be intercepted by PhoneApp in order to verify that device registration token is valid.

/ASP_GetUserFromPhone

After getting the hosts of regional connect servers from the top-level global connect server at /ASP_GetRegion,
the client application needs to check that the phone number is not yet registered on the regional connect server associated : fr1.buzzee.tel (fr1, fr2, ..., whichever first server respond).

https://fr1.buzzee.tel/JSON/ASP_GetUserFromPhone?Phone=33612345678&XMLC_Culture=fr

Note: Prefer to check on fr1.buzzee.tel then fr2.buzzee.tel, rather than invoking https://fr.buzzee.tel/ since it may return a 301 Redirect.

If there is a user already registered, the regional connect instance will respond with following response:

{ "Domain": "fr01.buzzee.tel", "Host": "fr01a.buzzee.tel",
  "XMLC_UserID": "100008", "XMLC_ScopeID": "100007" }

The table below describes the different fields:

If the user is not registered with this phone number the regional connect instance will respond with 404 Not Found:

{"Code": "ERR_USER_NOT_FOUND", "Message": "TXMLInstruction.Process - Operation=Assert Name=CheckCPSN_ID"}

PhoneApp can proceed to the next step of the registration process: /FormOpenAccount
Note: during rampup phase, /ASP_GetUserFromPhone should be used to obtain ERR_USER_NOT_FOUND, and proceed to /ASP_WaitObtainPIN to register the future user on waiting list at the top-level global connect servers.

The server may return errors

/FormOpenAccount

PhoneApp will query the instance fr1.buzzee.tel to retrieve the list of Regions,
then querying again the same endpoint with a RegionID will list hosts ready to accept registration of new users.

The first request to obtain the list of regions:

https://fr1.buzzee.tel/JSON/FormOpenAccount?Phone=33612345678&XMLC_Language=FRANCAIS

The instance will respond with the list of Regions (the document displayed here is only partial, the actual document may contain multiple fields and datasets)

{ "Regions": { "Region": [
    { "ID": "fr.buzzee.tel", "Name": "France BuzzeeTel" },
    { "ID": "be.buzzee.tel", "Name": "Belgique BuzzeeTel" },
    { "ID": "ch.buzzee.tel", "Name": "Suisse BuzzeeTel" } ] }
}

The PhoneApp client application may pick the proper Region based on the location of the user,
then it may query now fr1.buzzee.tel to obtain the list of available hosts for this RegionID:

https://fr1.buzzee.tel/JSON/FormOpenAccount?Phone=33612345678&RegionID=fr.buzzee.tel

The instance will respond with the list of hosts for this region (the document displayed here is only partial, the actual document may contain multiple fields and datasets)

{ "Regions": { "Region": [
    { "ID": "fr.buzzee.tel", "Name": "France BuzzeeTel", "Server" : [
      { "Domain": "fr01.buzzee.tel", "Host": "fr01a.buzzee.tel",
        "URL": "https://fr01a.buzzee.tel/Delos/",
        "MaxAccounts": "100", "FreeCount": "99", "Current": "1" },
      { "Domain": "fra02.buzzee.tel", "Host": "fra02.buzzee.tel",
        "URL": "https://fra02.buzzee.tel/Delos/",
        "MaxAccounts": "100", "FreeCount": "85", "Current": "15" }
      ] }
   ] },
  "PARAMS": { "RegionID": "fr.buzzee.tel", "ASP_Host": "fr01a.buzzee.tel",
              "FreeCount": "14", "CheckInvite": "1" }
}

New as of 2024-12-02: The PARAMS record contains the following fields

Before 2024-12-02: The client application needs to first select the Region, then lookup in the array of Server for this region, to select the host with maximum FreeCount, in order to balance the registration of new users across the pool of servers.

The Server record contains the following fields

At this stage the client application will select the least loaded server to continue the process of registration and obtain a PIN code for validation.

/OpenAccountObtainPIN

To validate the Phone number of the user, a PIN code will be sent to the device through SMS.
This PIN code will need to be collected by the PhoneApp or by the user to validate the action OpenAccount.
the HTTP request will be POST on the selected Host of the Region, in this example: fr01a.buzzee.tel

http://fr01a.buzzee.tel/JSON/OpenAccountObtainPIN
Phone=33612345678
XMLC_Language=FRANCAIS
SMS_Template=LOGIN_PINCODE_ANDROID
SMS_AppID=Hash123456
CountryCode=FR
XMLC_SkipNextAction=1

Delos instance will return in case of success a simple response:

{ "Status": "PIN_SENT" }

In case of error, expect a 500 Internal Server Error response:

{ "Code": "ERR_SEND_SMS" }

The server may return errors

/OpenAccount

Once the PIN code has been received, and collected by the mobile app on the phone,
it is possible to invoke the action which will create the account for the user on the selected server of the region.

The HTTP request will use POST multipart/form-data since there are few fields to submit:

http://fr01a.buzzee.tel/JSON/OpenAccount?
ASP_Host=fr01a.buzzee.tel
Phone=33612345678
PIN=123456
SkipCLOC_ROOT_PPRJ=1
SkipCPSN_ROOT_PPRJ=1
SkipPopulateFDB=1
SkipMessenger=1

Delos instance will create the user and register the user also on the connect.buzzee.tel cluster.
Delos instance will setup a credential dedicated for the JSON client :

{ "XMLC_UserID": "1000001", "XMLC_Session": "20231208", "XMLC_Credential": "1xx1abcdef"}

The following fields in the response are:

But the server may return errors:

Once the account of the user has been completed, the mobile phone application can perform a validation by query the host server to check the session with the newly obtained credential,

and store on Delos instance the device registration token that will be used for the notifications.

/CheckSession

After initial OpenAccount, PhoneApp may check validity of credential against Delos instance with following HTTP GET request

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/CheckSession

Delos instance will respond in case of success with the Status 1, meaning the credential encoded is valid:

{ "Status" : "1" }

in case of invalid credential Delos instance will return HTTP Status 401 Unauthorized with JSON response:

{"Code": "ERR_LOGIN_FAILED", "Message": "User not found"}

/Phone_RegisterLineObtainPIN

There is an optional step to register a secondary LineID (eSIM 33712345678) for the user phone number,
this secondary eSIM will be used to perform a /Phone_MakeCall,
This process requires 2 steps, first, request a PIN code, then submit the PIN code received by SMS to /Phone_RegisterLine

Note: in case the Line to register is the same as the Phone, skip directly to /Phone_RegisterLine

http://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_RegisterLineObtainPIN?Phone=33712345678

Delos instance will return in case of success a simple response:

{ "Status": "PIN_SENT" }

In case of error, expect a 500 Internal Server Error response:

{ "Code": "ERR_SEND_SMS" }

The server may return errors

/Phone_RegisterLine

To complete the registration of a secondary line associated with the Phone number of the user, submit to Phone_RegisterLine the PIN code recevied from Phone_RegisterLineObtainPIN (optional in case Phone and Line are the same number)

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_RegisterLine?Phone=33612345678&Line=33712345678&PIN=123456

Delos instance will respond with Status OK:

{ "Status" : "OK" }

/Phone_Register

After initial OpenAccount process, PhoneApp will request the user to accept notifications,
will collect the FireBase device registration token, and store this token on Delos instance with a HTTP GET request (or POST depending the length of the device registration token)

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_Register?Application=Phone&Token=abcdef0123456789

Delos instance will respond with Status OK:

{ "Status" : "OK" }

This device registration token will be sent to PhoneNotifications server to be relayed to FCM (FireBase Cloud Messaging)

/sendNotification [type=test] (Delos -> PhoneNotifications)

To verify the validity of the device registration token a test notification will be sent from Delos instance upon Phone_Register call
Delos instance sends a HTTP POST multipart/form-data request to the Notifications gateway server, with the type parameter as "test":

http://phoneappnotifications.buzzee.tel/sendNotification
XMLC_UserID=1000001
XMLC_Credential=1xx1abcdef
Domain=fr01.buzzee.tel
Host=fr01a.buzzee.tel
type=test
Application=Phone
Token=abcdef0123456789

Note: If the contact associated with the call recording has been setup to always skip transcript (CPSN_TRANSCRIPT=0),
then Delos will not send a notification to PhoneNotifications server.

Login into existing account

The connection of an existing account from the PhoneApp follows these steps:

1. Query connect1.buzzee.tel (connect2, ...) to lookup regional connect server (fr1.buzzee.tel, fr2.buzzee.tel) associated to the international prefix of the user phone number
2. Query fr1.buzzee.tel (fr2, ...) to lookup user from phone number ASP_GetUserFromPhone
    The regional connect instance will provide URL of the hosting server and UserID
3. Invoke the hosting server (fr01a.buzzee.tel) LoginObtainPIN with Phone and XMLC_UserID to obtain a new PIN code to submit for login
4. the host fr01a.buzzee.tel will send an SMS
    Intercept the SMS containing the PIN code on the device
5. Invoke Login with XMLC_UserID and PIN code received by SMS
    This will return Credential (and XMLC_Session) for the user, PhoneApp can query /CheckSession to verify the Credential

/LoginObtainPIN

After looking up /ASP_GetUserFromPhone against the connect server, PhoneApp can request a PIN code by SMS on the hosting server managing the user (XMLC_UserID).
the HTTP request will be GET on the hosting server, in this example: fr01a.buzzee.tel

http://fr01a.buzzee.tel/JSON/LoginObtainPIN?XMLC_UserID=1000001&Phone=33612345678

Delos instance will return in case of success a simple response:

{ "Status": "PIN_SENT" }

In case of error, expect a 500 Internal Server Error response:

{ "Code": "ERR_SEND_SMS" }

The server may return errors

/Login

PhoneApp is in charge to intercept the PIN code received by SMS.
The format of SMS is "123456 your PIN code to login.\n@fr01a.buzzee.tel #123456"
where @fr01a.buzzee.tel is the host
and #123456 is the PIN code (123456)

To login and obtain the credential, PhoneApp will send a HTTP request GET on the hosting server, in this example: fr01a.buzzee.tel

http://fr01a.buzzee.tel/JSON/Login?XMLC_UserID=1000001&PIN=1234

Delos instance will return in case of success the XMLC_Credential and the XMLC_Session

{ "XMLC_Session": "4400000005", "XMLC_Credential": "1xxx1abcdef"}

This server may raise an error which is formatted as follow:

{ "Code" : "ERR_LOGIN_FAILED", "Message": "TWebAccount.Login_BeforeXMLGram" }

The following table summarizes the different error codes:

Once the XMLC_Credential is obtained, PhoneApp can check the validity of the credential by invoking /CheckSession

https://fr01a.buzzee.tel/JSON/1xxx1abcdef/CheckSession

Delos instance will respond in case of success with the Status 1, meaning the credential is valid:

{ "Status" : "1" }

Customizing preferences

The preferences are setup initialy during /OpenAccount but may need to be customized by the user.

/User_Culture

PhoneApp may query the preferences of the user by sending a GET request on the hosting server, in this example: fr01a.buzzee.tel

http://fr01a.buzzee.tel/JSON/1xxx1abcdef/User_Culture

Delos instance will return a JSON document.

{ "Culture": {
  "Name": "en", "Locale": "en",
  "DecimalSeparator": ".", "ThousandSeparator": "\u0000",
  "CurrencyDecimals": "2", "CurrencyString": "$",
  "DateSeparator": "/", "TimeSeparator": ":", "TimeAM": "AM", "TimePM": "PM",
  "ShortDate": "m/d/yyyy", "LongDate": "dddd, mmmm d, yyyy",
  "ShortTime": "hh:nn", "LongTime": "hh:nn:ss",
  "ShortDateTime": "m/d/yyyy hh:nn", "LongDateTime": "dddd, mmmm d, yyyy hh:nn",
  "DynamicDate": "mmm d", "DynamicShortDate": "m/d/yy" }
}

/UpdatePreferences

PhoneApp will send a POST a HTTP request on the hosting server, in this example: fr01a.buzzee.tel

http://fr01a.buzzee.tel/JSON/1xxx1abcdef/UpdatePreferences
Profile.XMLC_Language=FRANCAIS
Profile.XMLC_Culture=fr
XMLC_SkipNextAction=1

Delos instance may return an unknown JSON document with a HTTP status code 200 OK.

{ }

/Phone_UpdateFilter (PhoneApp -> Delos)

Once call fowarding has been setup, the PBX can filter some of the incoming calls to redirect to voicemail, and may start the transcription.
PhoneApp will update the list of phone numbers to filter by posting HTTP request on the hosting server with the Filter:

http://fr01a.buzzee.tel/JSON/1xxx1abcdef/Phone_UpdateFilter
Filter=0162,0163,0270,0271,0377,0378,0424,0425,0568,0569,0948,0949

Delos instance will return a JSON response with a HTTP status code 200 OK.

{ "Status": "OK" }

The following table summarizes the different error codes:

/Phone_GetFilter (S2T -> Delos)

Deprecated in favor of /Phone_CallEvent Event=Incoming -> Action: Hangup or Voicemail.

When an incoming call arrives at the PBX (once call fowarding has been setup),
PBX S2T server should invoke Delos to retrieve the list of filtered numbers the user has registered.
The PBX will redirect to voicemail, and may start the transcription.
S2T will query with a GET HTTP request on the hosting server:

http://fr01a.buzzee.tel/JSON/Phone_GetFilter?XMLC_UserID=100008&Phone=33612345678

Delos instance will return a JSON response formatted as follow:

{ "Filter": "0162,0163,0270,0271,0377,0378,0424,0425,0568,0569,0948,0949" }

The following table summarizes the different error codes:

Call Forwarding Workflow

In order to intercept incoming phone calls in PhoneApp, and being able to record conversations,
the user need to setup call forwarding of the main SIM number.

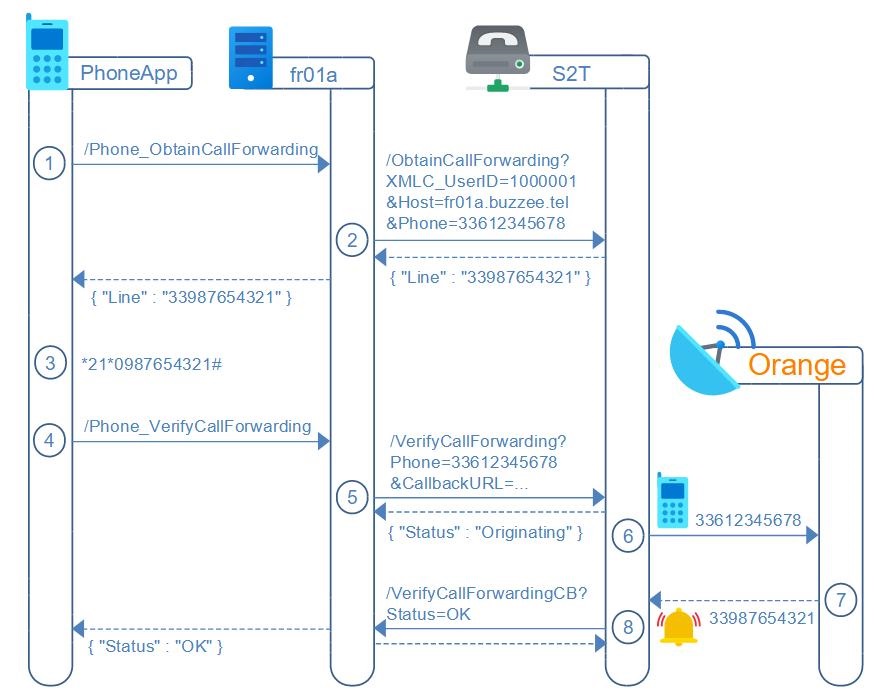

The worflow to setup call forwarding from PhoneApp is described below:

1. PhoneApp queries /Phone_ObtainCallForwarding on fr01a.buzzee.tel to obtain which PSTN line the main SIM phone number need to be setup for call forwarding.
2. the Delos instance fr01a.buzzee.tel will invoke the PBX (S2T) using action /ObtainCallForwarding and return the Line number to use for call forwarding
3. The PhoneApp will invite the user to setup the call forwarding on his phone, for the main phone number to redirect all calls to the PSTN Line number provided in previous step
4. Once the user has completed previous step, in order to check if the setup of call forwarding is active, PhoneApp will initiate the process of verification by invoking /Phone_VerifyCallForwarding on fr01a.buzzee.tel
5. Delos instance will forward this request to PBX S2T by invoking action /VerifyCallForwarding
6. The PBX S2T will originate a MakeCall on the trunk to the main phone number of the user (as provided in the request)
7. The Telco should reach the call forwarding number programmed (Status=OK) or the mobile device of the user (Status=Failed)
8. the PBX intercept the call from the network on the redirected line 33987654321 knowing the diversion is from the user phone number 33612345678 and initiated from a specific phone number located on this very same PBX, then the PBX S2T will invoke the CallbackURL /Phone_VerifyCallForwardingCB by setting the Status=OK. Delos will respond to PhoneApp waiting on the original request Phone_VerifyCallForwarding.
BUT, if the call is being answered by the user phone, it will play a voice message telling the user that the setup has failed and need to retry, it means the PBX S2T did not intercept the call on the Line 33987654321 and will invoke the CallbackURL with Status=Failed.
Delos will respond to PhoneApp waiting up to a specific Timeout from the original request to Phone_VerifyCallForwarding.
PhoneApp will receive the response "Status": "Failed" and will iterate over to step #3 with details on how to proceed, such as selecting properly the main SIM for calls.

{ "Line": "33987654321" }

{ "Line": "33987654321" }

{ "Status": "OK" }

{ "Status": "Failed" }

{ "Status": "Originating" }

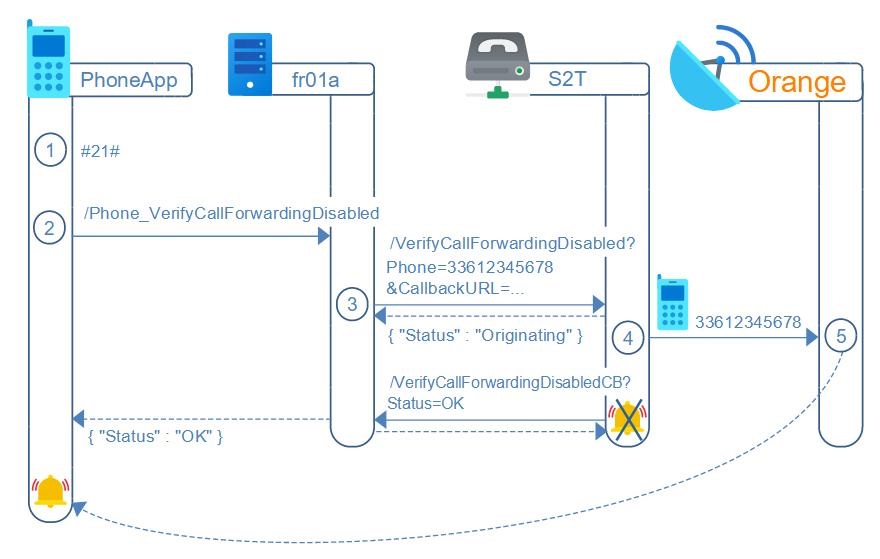

In order to verify call forwarding is disabled, the user will follow from PhoneApp the following workflow:

1. PhoneApp will invite the user to dial the number #21# to cancel call forwarding on his phone, for the main phone number
2. PhoneApp will help to validate that from now on call forwarding is disabled by invoking on fr01a.buzzee.tel action /Phone_VerifyCallFowardingDisabled (despite the naming, it means to verify if call forwarding has been properly cancelled)
3. Delos instance fr01a.buzzee.tel will invoke PBX S2T /VerifyCallFowardingDisabled with necessary parameters such as main phone number of the user
4. The PBX S2T will originate a MakeCall to the main phone number of the user (as provided in the request)
5. The Telco should reach the mobile device of the user Status=OK) or the call forwarding number programmed (Status=Failed)
6. If the PBX intercept the call from the network on the redirected line 33987654321 knowing the diversion is from the user phone number 33612345678, then the PBX S2T will invoke the CallbackURL /Phone_VerifyCallForwardingDisabledCB with Status=Failed, the process to disable call forwarding was not effective and need to be retried from Step #1 in PhoneApp with details on how to proceed, such as selecting properly the main SIM for calls.
NOW, if the call is being answered by the user phone, it will play a voice message telling the user that call forwarding is now disabled, and all calls will endup directly on his phone. Meaning, that the phone call is not intercepted by the PBX on the redirected Line 33987654321, and so the PBX S2T will invoke the CallbackURL /Phone_VerifyCallForwardingDisabledCB with Status=OK

{ "Status": "Failed" }

{ "Status": "OK" }

{ "Status": "Originating" }

{ "Status": "OK" }

{ "Status": "OK" }
